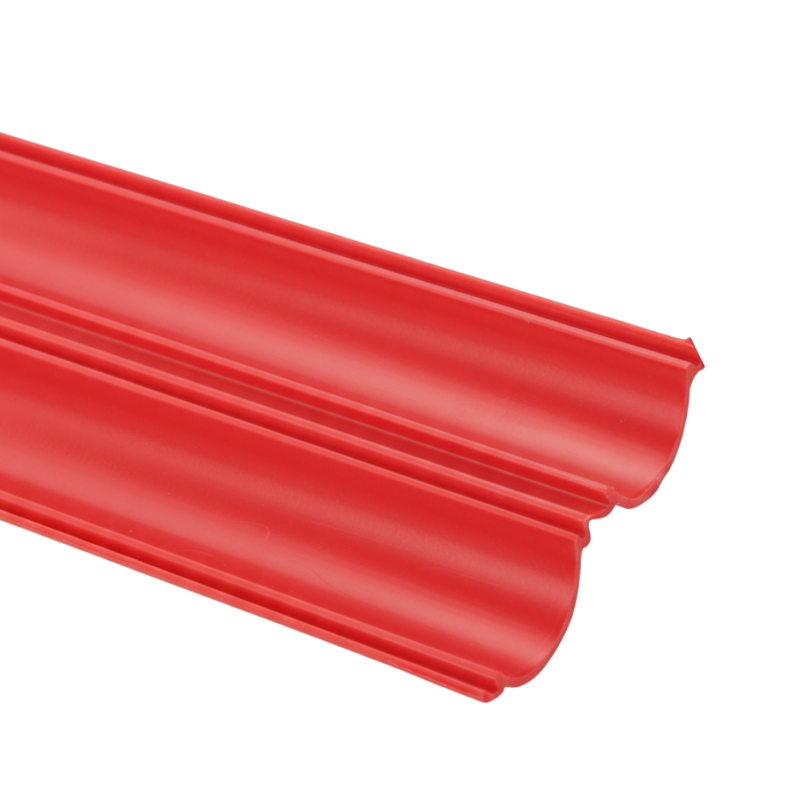

GM Split Duct – Smooth PE

Split PE duct for quick repairs and retrofits around existing cables. The duct halves slide together easily with no tools required — even when installed in trenches with dirt and sand.

Tool-free installation
Slides together quickly — no special tools needed.
Works in tough conditions
Designed to assemble reliably even with dirt and sand present.
Ideal for repairs & retrofits
Perfect when moving already laid cables or performing repairs.

Ordering information

  • Sold in fixed lengths per unit. Quantity must follow the “Meters per unit” value.
  • Example: 58/50 mm is supplied in 3.3 m units (order 3.3 m, 6.6 m, 9.9 m, etc.).
  • Other sizes are supplied in 3.0 m units (order 3 m, 6 m, 9 m, etc.).
  • Frame size indicates the approx. meters per bundle/frame (for logistics/planning).

Sizes & packaging

Diameter (OD/ID) Meters per unit Frame size (approx.) Item no.
58/50 mm 3.3 m 726 m 13-058/50
110/100 mm 3.0 m 162 m 13-110/100
120/110 mm 3.0 m 144 m 13-120/110
160/138 mm 3.0 m 72 m 13-160/138

Note: Frame size is for reference/logistics only and is not a purchase requirement.
