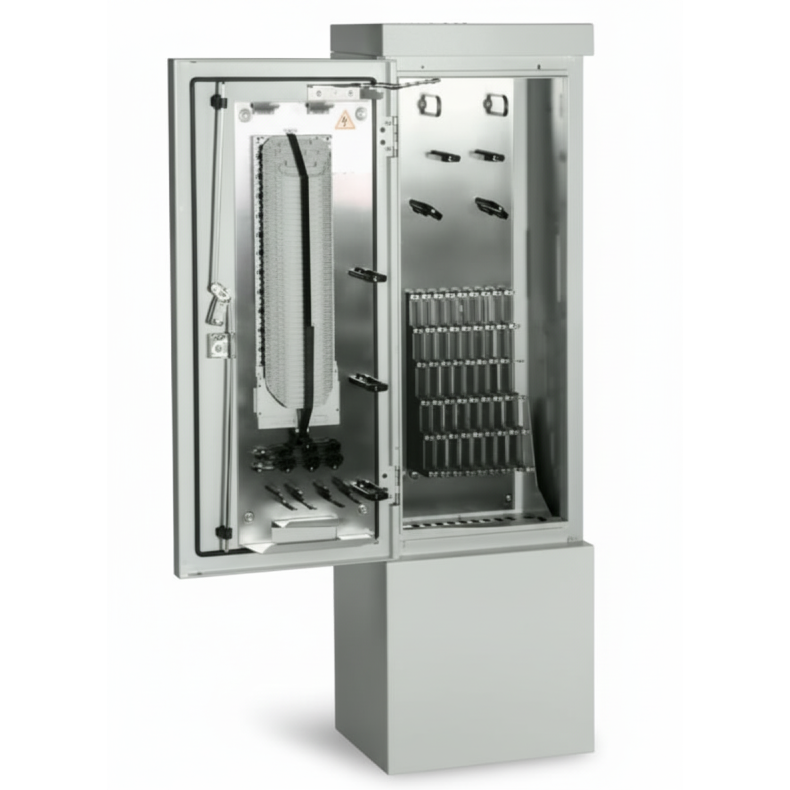

Distribution Cabinet - FPT Gf-NVt Size M
  • Distribution Cabinet - FPT Gf-NVt Size M
  • Distribution Cabinet - FPT Gf-NVt Size M

Distribution Cabinet - FPT Gf-NVt Size M

You must be logged in to be able to place orders

Features and benefits:

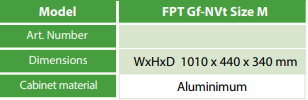

  • Housing dimensions: 1010 x 440 x 340 mm
  • Lower housing part dimensions: 400 x 440 x 340 mm
  • Ground pedestal dimensions: 660 x 440 x 300 mm
  • Storage for up to 60 individual tubes possible
  • Capacity for at least 36 SC cassettes
  • Storage for at least 12 tubes up to 20 mm and 60 tubes up to 12 mm

Stock status: In stock

Professional street cabinet used in FTTH projects. Excellent performance, flexible structure. FOr medium and large areas. Easy installation process.



Street cabinet M is an innovative solution that is the optimal balance between size, density and access. Optimal for cable protection. Comb system for easy planning, blowing and splicing documentation.



We recommend always including a cable slack loop inside the manhole, base, or cabinet. The length of the loop should be adjusted according to conditions, temperature, and route length – as a general guideline, 10–20 meters is sufficient in most cases.



Features and benefits:

  • Housing dimensions: 1010 x 440 x 340 mm
  • Lower housing part dimensions: 400 x 440 x 340 mm
  • Ground pedestal dimensions: 660 x 440 x 300 mm
  • Storage for up to 60 individual tubes possible
  • Capacity for at least 36 SC cassettes
  • Storage for at least 12 tubes up to 20 mm and 60 tubes up to 12 mm
