Reducing microduct connector for joining different duct sizes

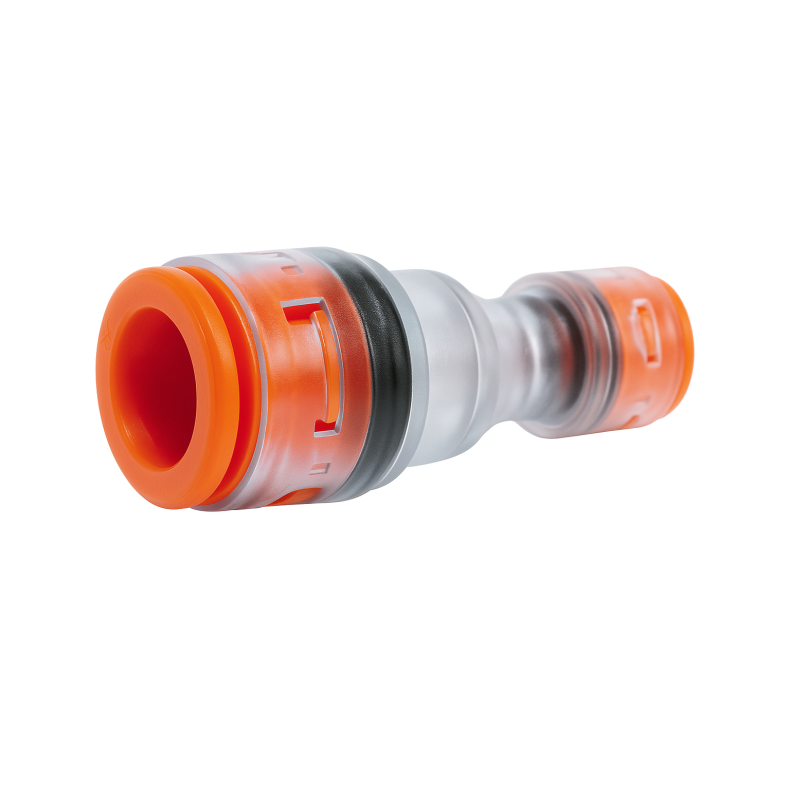

Reducing Connector

You must be logged in to be able to place orders

Reducing connector for joining microducts of different sizes.
A practical solution for transitions during installation, upgrades and repairs.

Materials:

Body: PC, impact resistant
Collet: POM, stainless steel teeth
O-Rings: Nitrile rubber

Temperature:

Min. working temperature: -20°C
Max. working temperature: +60°C

Pressure:

Short time working pressure: 16 bar
Insertion force: 50 N max. (5 kg)

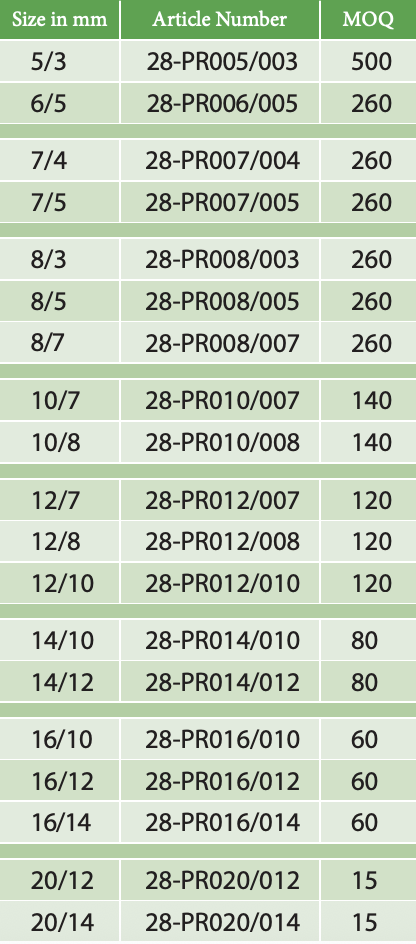

Available sizes:

5/3 mm, 6/5 mm
7/4 mm, 7/5 mm
8/3 mm, 8/5 mm, 8/7 mm
10/7 mm, 10/8 mm
12/7 mm, 12/8 mm, 12/10 mm
14/10 mm, 14/12 mm
16/10 mm, 16/12 mm, 16/14 mm
20/12 mm, 20/14 mm

Speficatio n PDF
